Cluster
This document describes the intended architecture and operational model for the Data Platform Kubernetes cluster. Configuration values such as versions, instance types, scaling limits, and retention periods change over time. The Terraform and Helm configuration in
modernisation-platform-environmentsis the source of truth.
The cluster runs Amazon EKS as the platform control plane for Data Platform workloads. It uses private subnets, managed security controls, workload identity, and policy enforcement to provide a secure and standardised Kubernetes runtime across all environments.
All cluster changes are managed through infrastructure as code, using pinned module versions and centrally maintained configuration.
Environments
Each environment has a dedicated cluster. Environment-specific settings are managed in the cluster’s configuration/cluster.yml in modernisation-platform-environments, which pins the Kubernetes version, node image, add-on versions, CRD versions, Helm chart versions, and Route 53 zones for that environment.
The platform runs development, test, preproduction, and production environments.
Cluster design
The platform provisions EKS using the terraform-aws-eks module, with:
- Private subnets for worker nodes and for the EKS control plane network interfaces (the control plane itself is AWS-managed)
- API authentication mode, so access is granted through EKS access entries
- Cluster secrets encryption enabled with a customer-managed KMS key
- CloudWatch control plane logs enabled (
api,audit,authenticator,controllerManager,scheduler) - Access entries for infrastructure and operations roles, including the member infrastructure role, the GitHub Actions plan and apply roles, and the platform engineer administrator SSO role
The API server endpoint allows both private and public access. Public access is restricted to an allowlist of CIDR ranges, and authorisation is enforced through IAM and EKS access entries.
Trust boundaries
The architecture follows clear trust boundaries:
- AWS account and VPC boundary – isolates each environment in a dedicated AWS account with separate network resources.
- Control plane boundary – the EKS control plane is managed by AWS, with access controlled by EKS access entries and IAM principals.
- Node boundary – worker nodes run in private subnets with explicit security group ingress and encrypted storage.
- Namespace and workload boundary – platform services are isolated into dedicated namespaces and use scoped service identities.
- External integration boundary – ingress, DNS, and certificate flows are controlled through dedicated controllers and Route 53 scoped permissions.
Compute and node provisioning
System node group
A managed node group provides baseline system capacity:
- Minimum size:
3 - Desired size:
3 - Maximum size:
10 - Instance type:
m8g.large(Graviton) - Operating system: Bottlerocket ARM64
- IMDSv2 required
- Automatic node repair enabled
- Encrypted
gp3data volume using a customer-managed KMS key
System nodes are tainted and labelled so platform components are scheduled predictably.
Karpenter
Karpenter is deployed for dynamic workload scaling, with:
- Dedicated IAM and node roles
- A dedicated SQS interruption queue with KMS encryption
- A separate Helm chart for cluster-specific Karpenter configuration
- Node class tags aligned to platform conventions
Networking inside the cluster
Cilium is deployed as the cluster CNI and service networking layer.
The platform also deploys and manages:
- CoreDNS for in-cluster DNS
- Gateway API CRDs
- AWS Load Balancer Controller and its CRDs
- A shared services gateway
- External DNS for Route 53 integration
- Metrics Server for resource metrics
Ingress and service exposure are controlled through cluster configuration and environment-specific Route 53 zones.
Storage
The default storage class is gp3, with encryption enabled and WaitForFirstConsumer binding. The legacy gp2 default annotation is explicitly removed.
The EBS and EFS CSI drivers are deployed as managed EKS add-ons with dedicated workload identities.
Identity and access
The cluster uses pod-level identities and service-account IAM roles to apply least-privilege access.
Identity patterns include:
- EKS Pod Identity for selected services, including AWS CloudWatch Observability and AWS Load Balancer Controller
- IAM roles for service accounts for components such as:
- Cluster Autoscaler
- Prometheus
- Fluent Bit
- Cert Manager
- External DNS
- External Secrets
- EBS and EFS CSI drivers
- AWS network flow monitoring agent
Platform services and add-ons
Core capabilities are delivered through managed EKS add-ons:
- EKS Pod Identity Agent
- EBS and EFS CSI drivers
- Amazon GuardDuty agent
- EKS node monitoring agent
- AWS network flow monitoring agent
Additional platform services are deployed through Helm, including:
- Cilium
- CoreDNS
- Kyverno and its policies
- Cluster Autoscaler
- Karpenter
- AWS Load Balancer Controller
- AWS CloudWatch Observability
- kube-prometheus-stack
- Fluent Bit
- Cert Manager and issuer configuration
- External DNS
- External Secrets and secret stores
- KEDA
- Metrics Server
- Shared services gateway
Versions for EKS add-ons, CRDs, and Helm charts are managed centrally per environment in the same configuration/cluster.yml file.
Security
Security controls include:
- A dedicated node security group with explicit intra-node and control-plane-to-node rules
- NodePort access scoped to the expected firewall subnet CIDR ranges
- EKS secrets encryption with a customer-managed KMS key
- KMS encryption for:
- EKS and application log groups
- EBS volumes
- The Amazon Managed Service for Prometheus workspace and its logs
- The Karpenter SQS queue
- Shared AWS Secrets Manager secrets
- Kyverno policy enforcement for privileged capability controls, with explicit allowlists where justified
- Service-linked IAM roles for Auto Scaling and EC2 Spot
Threats and mitigations
This section summarises key threat areas and the mitigations in the current design.
| Threat area | Mitigation in current design |
|---|---|
| Excessive pod permissions | IAM roles for service accounts and EKS Pod Identity |
| Lateral movement between workloads | Namespace separation, controller-specific service identities, and policy controls |
| Unencrypted data at rest | Customer-managed KMS keys for logs, storage, queues, and monitoring services |
| Uncontrolled privileged workloads | Kyverno policies with explicit capability allowlists and justifications |
| Ingress misconfiguration | Managed ingress controllers, Gateway API resources, and Route 53 scoped permissions |
Observability and monitoring
Observability is built into the cluster baseline:
- CloudWatch log groups for cluster, application, and container insights logs
- 365-day retention with KMS encryption for all defined log groups
- A kube-prometheus-stack deployment that writes to an Amazon Managed Service for Prometheus workspace with encrypted storage
- AWS network flow monitor associated with the EKS cluster resource
- Fluent Bit and CloudWatch Observability agents deployed in-cluster
Grafana provides the visualisation and alerting layer over this telemetry. Unlike the platform services described above, Grafana does not run on the Data Platform EKS cluster — it’s deployed onto the MOJ Cloud Platform cluster. The Grafana Helm release is deployed and managed as code from the monitoring configuration in modernisation-platform-environments, while the Cloud Platform namespaces that host it are defined separately in cloud-platform-environments for development and production.
Grafana reads from the Amazon Managed Service for Prometheus workspace and per-account CloudWatch data sources. Dashboards are organised into Platform, Kubernetes, Networking, and Databases folders, and alert rules are generated from a shared golden signals definition. Access is authenticated through Microsoft Entra ID, and the stack runs in the development and production environments.
Grafana alerts are sent to PagerDuty rather than posted to Slack directly. The PagerDuty Event Orchestration (“Data Platform Alerting”) routes each alert by environment and severity to the relevant on-call service, and PagerDuty then posts incident notifications to the appropriate Slack channel — #data-platform-high-priority-alerts for production critical alerts, #data-platform-preproduction-alerts for preproduction alerts, and #data-platform-low-priority-alerts for production warnings and unmatched alerts.
DNS and certificates
Route 53 zones are configured per environment and used by External DNS and certificate automation.
Cert Manager is deployed with DNS integration for managed certificate issuance in platform domains.

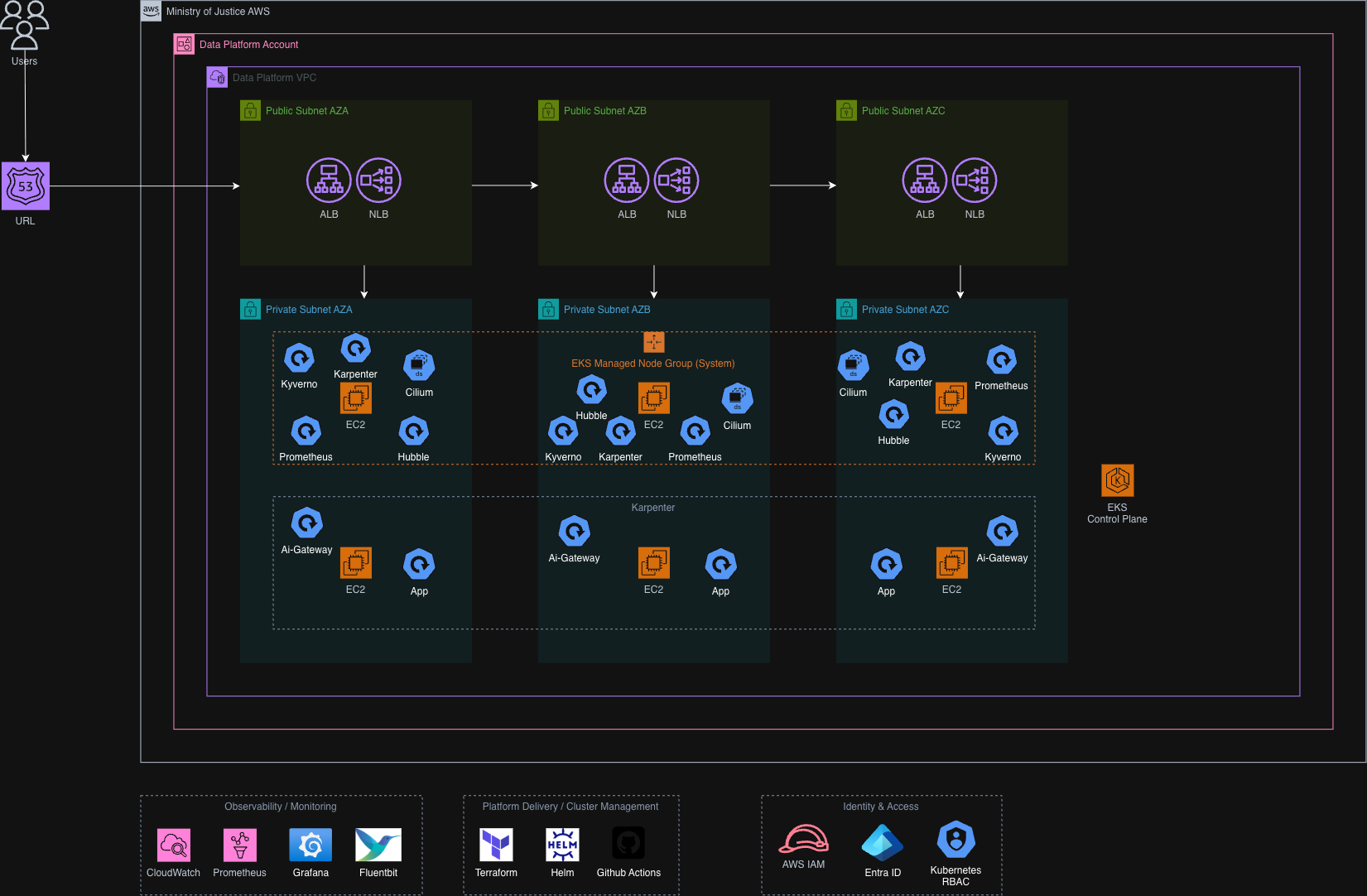

Diagram
